Chemical Resistant HVAC Duct Insulation XPE Foam Closed Cell For Construction
Thông tin chi tiết sản phẩm:
| Place of Origin: | Made In China |
| Hàng hiệu: | EkkoFlex |
| Chứng nhận: | BS476,UL94,RoHS,REACH |
Thanh toán:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Giá bán: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Thông tin chi tiết |
|||
| Product name: | Chemical Resistant HVAC Duct Insulation XPE Foam Closed Cell For Construction | Structure: | Adhesive+XPE Foam+ Aluminum foil |
|---|---|---|---|
| Density: | 28-35kg/m³ | Thickness: | 12/13/15/19/25/30mm |
| Working Temperature: | '-40℃ ~80℃ | Flammability: | B1 grade |
| Water Absorption: | Less than 0.5% | Type: | insulation material |
| Width: | 1000-1500mm | Application: | HVAC ducts, pipes, tanks, and equipment |
| Thermal Conductivity: | ≤0.045W/m.k | Reflective: | 96%~97% |
Mô tả sản phẩm

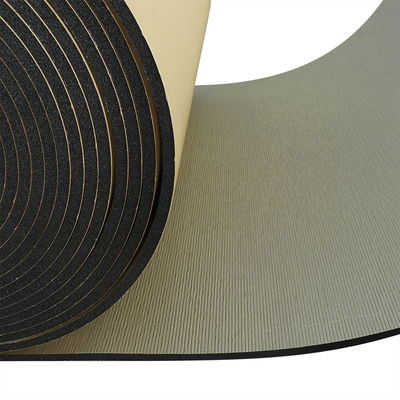

Chemical Resistant HVAC Duct Insulation XPE Foam Closed Cell For Construction
This chemical-resistant HVAC duct insulation, made of closed-cell XPE foam, is a top choice for construction. Its closed-cell structure forms a tight barrier, effectively resisting various chemicals, oils, and corrosive substances common in construction sites. This ensures the insulation remains intact, maintaining its performance over time.
Beyond chemical resistance, it offers excellent thermal insulation. It minimizes heat transfer in HVAC ducts, enhancing system efficiency and reducing energy loss. The closed-cell design also makes it moisture-proof, preventing mold growth and protecting ductwork from water damage.
In construction, it’s ideal for ducts in industrial facilities, laboratories, hospitals, and other places where chemical exposure is likely. Easy to install, it fits various duct shapes, providing reliable insulation and protection, thus ensuring the long-term operation of HVAC systems.
XPE foam coated adhesive and aluminum foil:
|
Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|
XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface. IXPE is physically cross-linked, with
smooth surface.
Q2:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q3:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
